Practical Malware Analysis - Lab 3

First my setup for this lab is two VMs Win7 and linux connected together with Internal network
Setup INetSim on linux VM

On Win7:

  • Running procmon and setting a filter on the malware executable name and clearing out all events just before running.

  • Starting Process Explorer.

  • Gathering a first snapshot of the registry using Regshot.

  • Setting up network traffic logging using Wireshark.

  • Setting up ApateDNS pointing to my linux VM

Lab 3-1

Analyze the malware found in the file Lab03-01.exe using basic dynamic analysis tools.

Q1: What are this malware’s imports and strings?

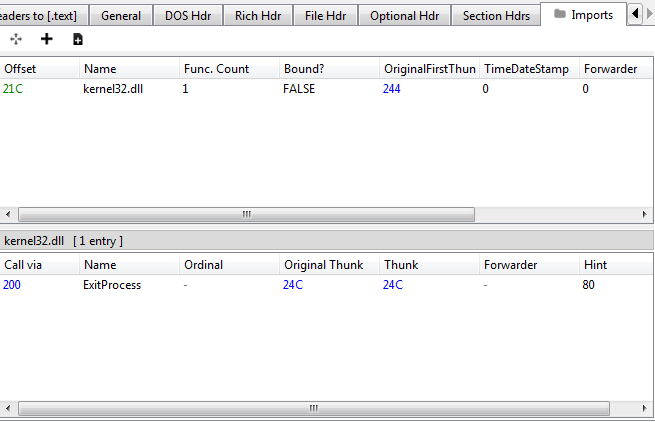

Using PeBear we get only exitprocess import from kernel32.dl (packed?)

../_images/lab3-1q1.png

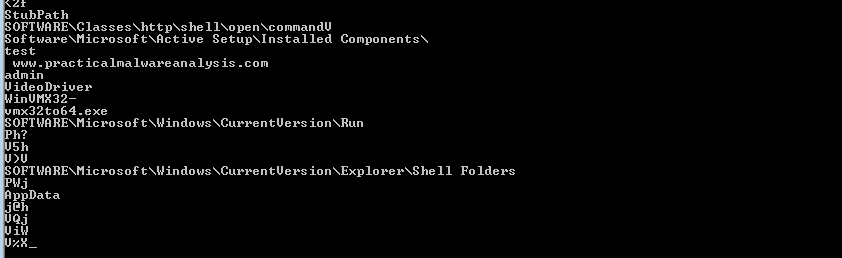

Using Strings command we get many useful information like registries used, domain name, and some executable and driver name

../_images/lab3-1q11.png

Q2: What are the malware’s host-based indicators?

Q3: Are there any useful network-based signatures for this malware? If so, what are they?

Lab 3-2

Analyze the malware found in the file Lab03-02.dll using basic dynamic analysis tools.

Q1: How can you get this malware to install itself?

By utiltizing rundll32.exe

Q2: How would you get this malware to run after installation?

Using sc command

Q3: How can you find the process under which this malware is running?

Using filter process name in Process Explorer

Q4: Which filters could you set in order to use procmon to glean information?

By parent PID

Q5: What are the malware’s host-based indicators?

Q6: Are there any useful network-based signatures for this malware?

Lab 3-3

Execute the malware found in the file Lab03-03.exe while monitoring it using basic dynamic analysis tools in a safe environment.

Q1: What do you notice when monitoring this malware with Process Explorer?

Q2: Can you identify any live memory modifications?

Q3: What are the malware’s host-based indicators?

Q4: What is the purpose of this program?

Lab 3-4

Analyze the malware found in the file Lab03-04.exe using basic dynamic analysis tools. (This program is analyzed further in the Chapter 9 labs.)

Q1: What happens when you run this file?

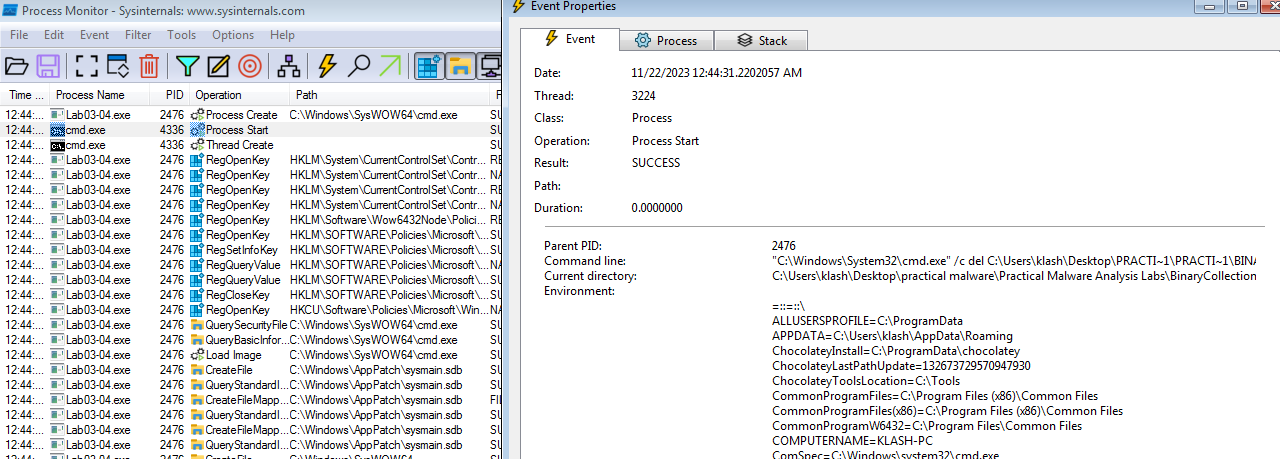

It deletes itself, in procmon searching for ProcessCreate for any processes created we notice it calls cmd to delete the exe

../_images/lab3-4q1.png

Q2: What is causing the roadblock in dynamic analysis?

Most likely it requires certain conditions for it not be deleted (command line argument or not VM environment)

Q3: Are there other ways to run this program?

Don’t know at this stage
